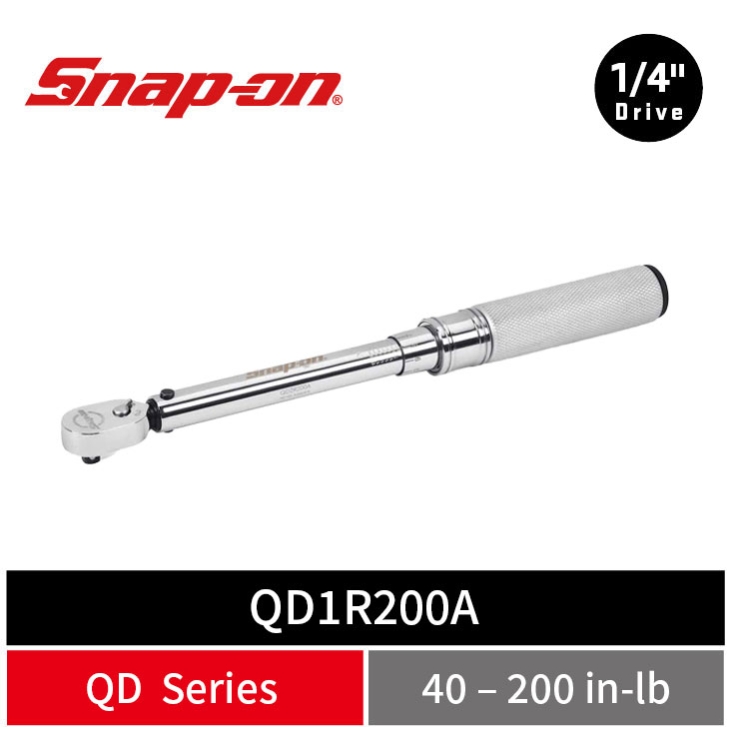

QD1R200A
Snap-on 二分 1/4" SAE扭力扳手 (40–200 in-lb)
  • QD 系列點擊式扭力儀器採用創新設計,可提供一致的準確讀數和堅固耐用、無故障的性能。
  • • 幾乎免維護的密封棘輪可防止灰塵和濕氣進入
  • • 若纏繞超過刻度,不會意外拆卸
  • • 從滿量程的 20% 到滿量程,讀數精確至 ±4% CW 和 ±6% CCW
Features
產品特色

QD 系列點擊式扭力儀器採用創新設計,可提供一致的準確讀數和堅固耐用、無故障的性能。
• 幾乎免維護的密封棘輪可防止灰塵和濕氣進入
• 若纏繞超過刻度,不會意外拆卸
• 從滿量程的 20% 到滿量程,讀數精確至 ±4% CW 和 ±6% CCW

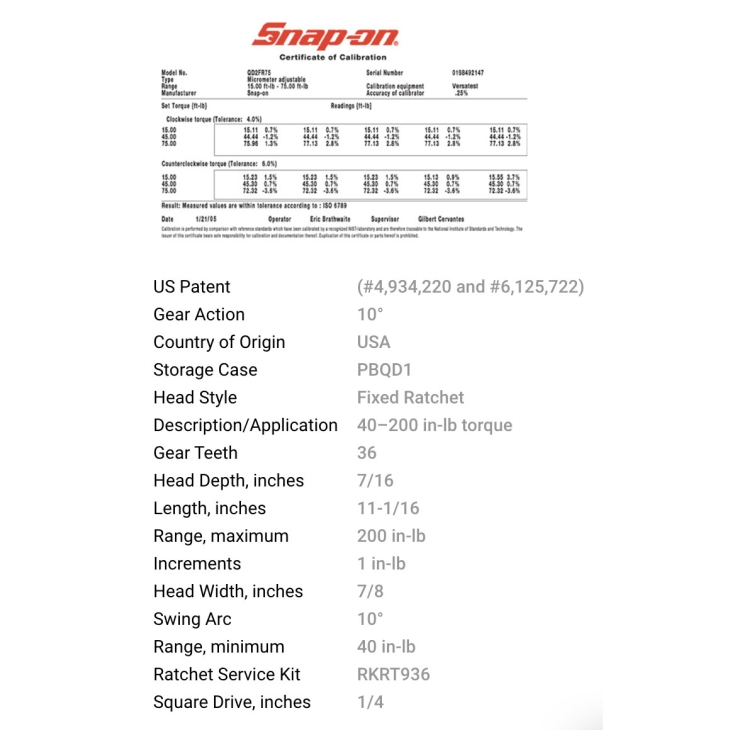

Specification
產品規格
US Patent(#4,934,220 and #6,125,722)
Gear Action10°
Country of OriginUSA
Storage CasePBQD1
Head StyleFixed Ratchet
Description/Application40–200 in-lb torque
Gear Teeth36
Head Depth, inches7/16
Length, inches11-1/16
Range, maximum200 in-lb
Increments1 in-lb
Head Width, inches7/8
Swing Arc10°
Range, minimum40 in-lb
Ratchet Service KitRKRT936
Square Drive, inches1/4
