TKN72
Snap-on 兩分 1/4" 圓頭短棘輪扳手
TN72
TN72

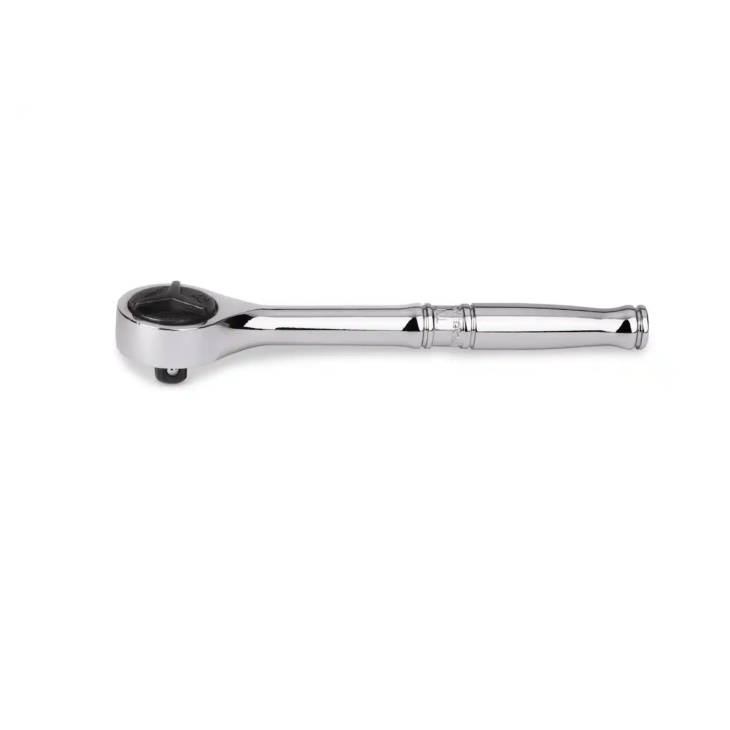

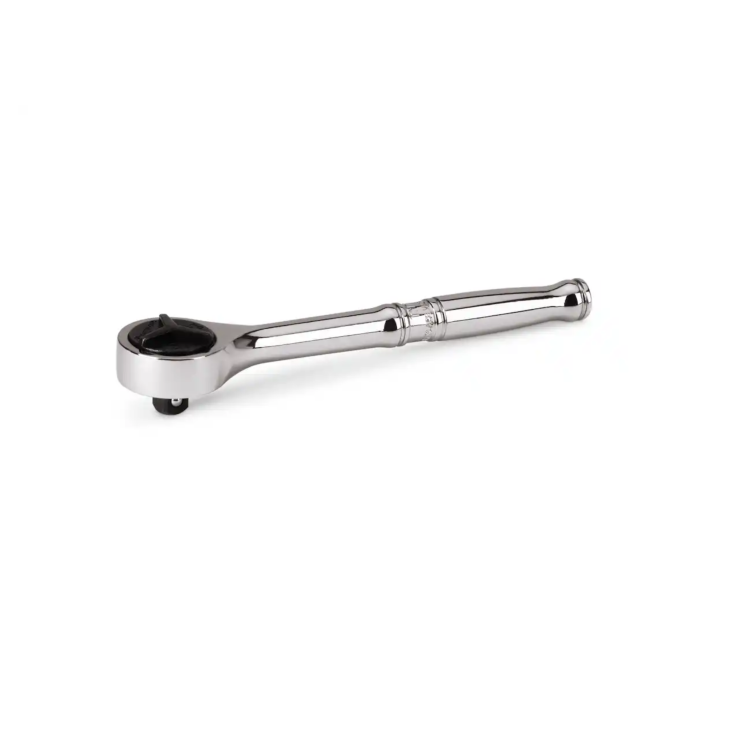

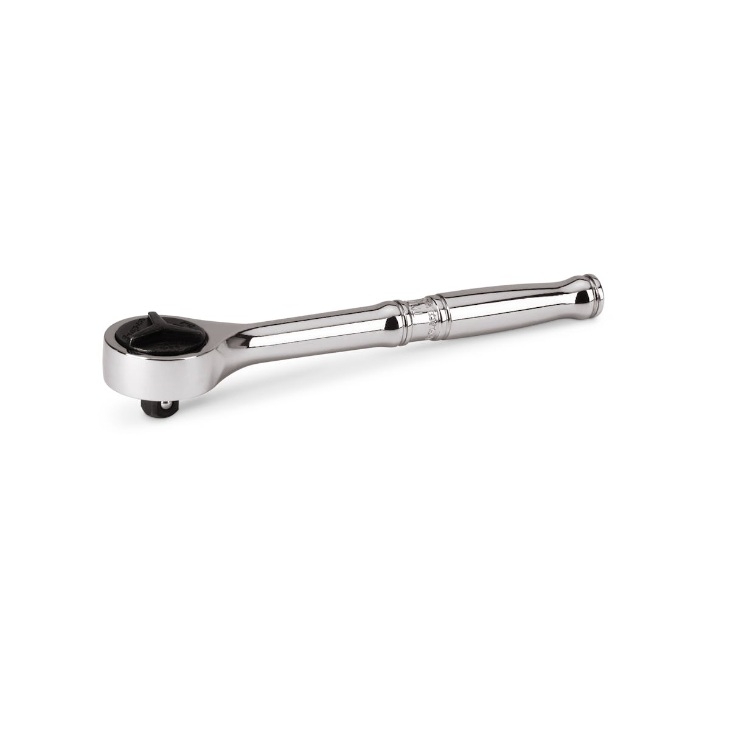

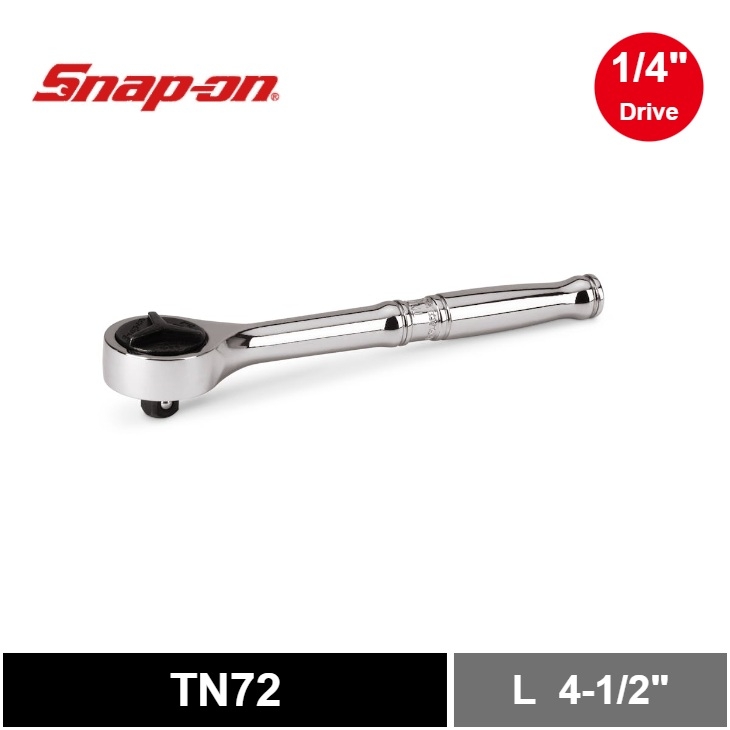

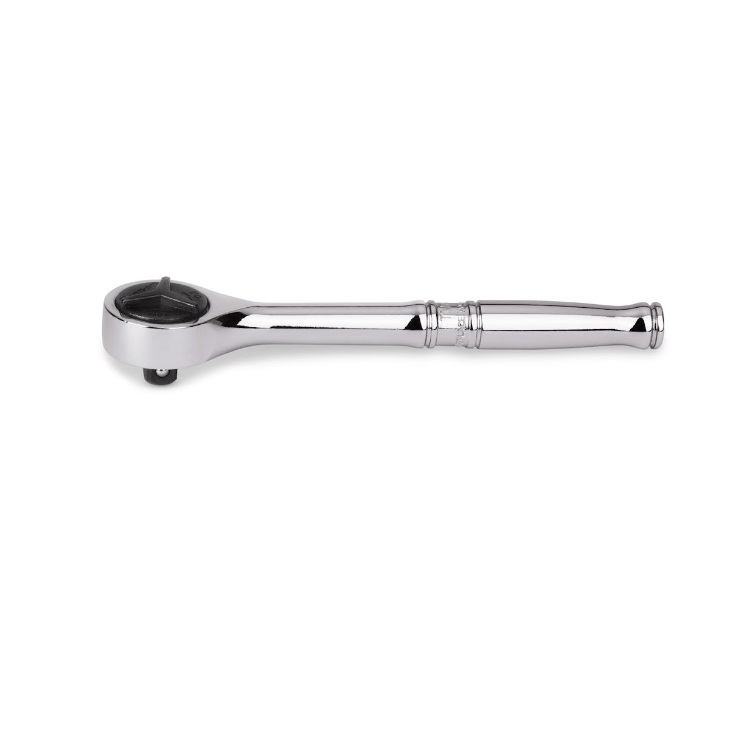

Snap-on 兩分 1/4" 圓頭標準棘輪扳手
- • 緊湊的圓頭設計提供更好進入狹小空間的通道
- • 72齒齒輪提供5°的擺動弧度，意味著齒之間的移動較短
Features
產品特色
• 緊湊的圓頭設計提供更好進入狹小空間的通道
• 72齒齒輪提供5°的擺動弧度，意味著齒之間的移動較短
Specification
產品規格
| Joint Repair Kit | — |

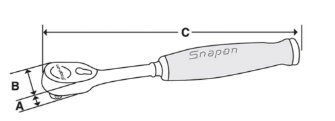

| Dimension C, Length, inches | 4-1/2 |
| Repair Kit | RKRTHNF72 |
| Replacement Coverplate | — |
| Locking Mechanism Repair Kit | — |
| Replacement Grip | — |
| Country of Origin | USA |
| Gear Teeth | 72 |
| ASME®/ANSI® | B107.10 |
| Description (Chart) | Standard Handle Round Head |
| Finish | Chrome |
| Swing Arc | 5 |
| Dimension B, Head Width, inches | 1-1/4 |
| Square Drive, inches | 1/4 |
| Dimension A, Head Depth, inches | 7/16 |
