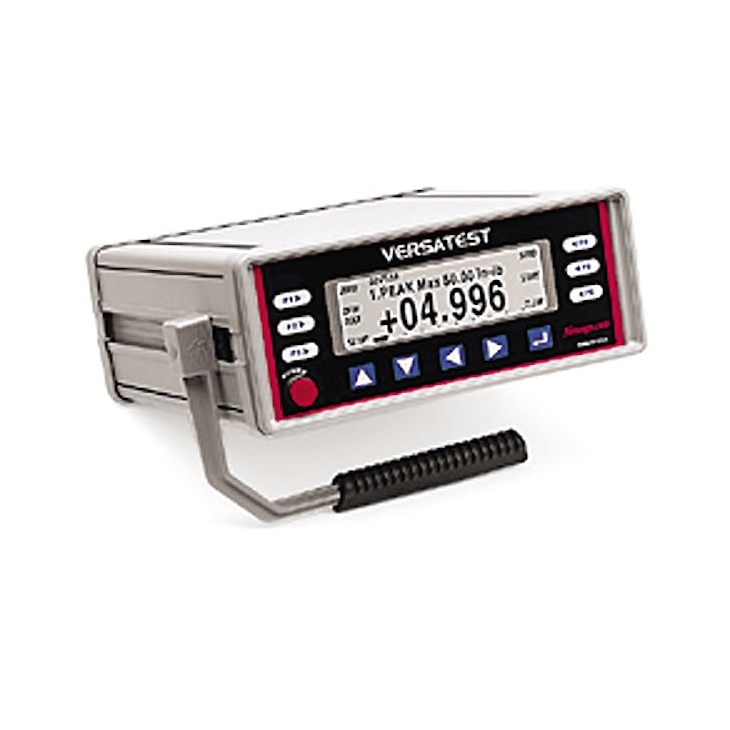

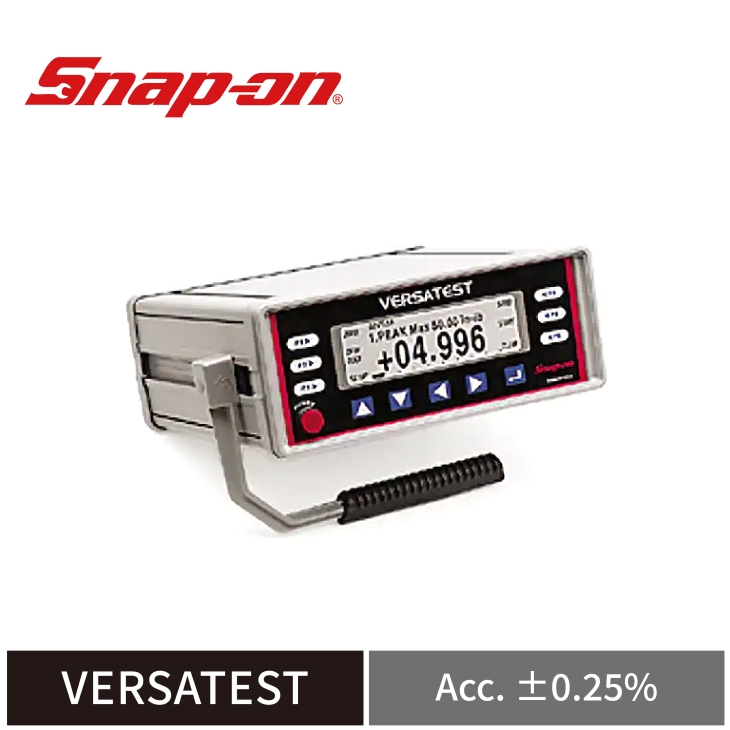

VERSATEST

Features

產品特色

專為高精度、數據自動化與多功能測試於一體的頂級校驗主機，符合最嚴苛的國際工業標準 (ISO、NIST) 而設計

• 美國原裝進口
• 精確度：順時針、逆時針 ±0.25% (於滿量程的 10% – 100% 區間，25 °C)
• 感應器支援量程範圍：5 in-oz 至 2,000 ft-lb，依選購感應器而定 (約 0.04 – 2712 N•m)
• 提供 7 種計量單位：ft-lb、in-lb、in-oz、N•m、dN•m、kg-m、kg-cm
• 可儲存 3,000 組數據 (內含日期/時間戳記)
• 認證規範：CE Conformity / NIST Traceable
• 大型高解析 LCD 螢幕

• 具備 ±0.25% 的實驗室級超高精度 (於滿量程的 10% – 100% 區間)，支援順時針 (CW) 與逆時針 (CCW) 雙向檢測
• 四大專業測試模式：Track (追蹤)、Peak Hold (峰值鎖定)、First Peak (第一峰值)、Power Tool (動力工具)
• 內建 SPC (統計過程控制) 功能，可直接進行製程能力分析
• 雙 RS232C 串口，可同時連接電腦與印表機
• 智慧型隨插即用：可自動識別感應器規格，所有感應器均附帶可追溯至 NIST® (美國國家標準暨技術研究院) 的校驗證書與序號
• 類比輸出：可連接示波器或 X-Y 繪圖儀，進行更深層次的力學曲線分析
• 支援多國語系：內建英、西、法、日、德五種語言介面，符合全球化作業需求

Specification

產品規格

Units Of Measure		in-oz, in-lb, ft-lb, N?·m, dN?·m, kg-cm, kg-m
Printer/Computer Serial Output Port		RS232 (True), 300-19.2K Baud
Select Keys		Increment, Decrement, Shift Left, Shift Right, Enter
Power Supply		Auto Switching 100–240 VAC, 50/60 Hz, 50 watts
Country of Origin		USA
Histogram		Lower Set Limit, Upper Set Limit, 10 Divisions
Bar Graph		100 Segment Analog of Applied Torque Scaled to Limits Set Value
Dimensions		10" W x 10-1/2" D x 4" H (including carrying handle)
Loader Control Relays		Two, Normally Open, Form A, Rated 12 V DC @ 1/2 A Close Contact at 110% CW or CCW or Torque/Force Transducer Range
Data Storage/Recall		3,000 Measurements
Modes		Track, Peak Hold, First Peak, Power Tool
Storage Temperature Range		-20–50 °C (-2–122 °F)
Computer Serial Com Port		RS232 (True), 300–19.2K Baud
Soft Key User Interface		Units, Calibration, Date/Time, Statistics, Hi/Low Limits Set, Data Store, Data Recall, Printer Setup, Zero, Auto/Manual Store/Send/Clear
Display Rate		Five Updates per Second
Accuracy		±0.25% of reading at 25 °C (with TTC Transducer calibration)
Statistical Analysis		Max, Min, Range, Mean, Sigma N, Sigma, Cp, Cpk, % Error, -NoGo, +NoGo
Operating Temperature Range		10–32 °C (50–90 °F)
Capacity, digits [counts] (bit A/D)		5 [± 32,000] (16)
Analog Output		+(CW)/-(CCW) 1.8 V at Transducer Full Range Linearity, ±1% of Reading
Temperature Drift Percentage		+0.03 °C (+0.017 °F)
Humidity		85% Relative Humidity @ 21 °C (70 °F)
Sample Rate		2,000 samples per second
Display		Large 5-1/2" x 1-1/2" Backlit LCD Graphics Display (240 x 64 dot matrix, 0.67" torque digits character height)
