Snap-on 1/2" Drive 12-Point SAE 15/16" Flank Drive® Shallow Socket
SW301
Snap-on 1/2" Drive 12-Point SAE 15/16" Flank Drive® Shallow Socket
- Snap-on® 套筒採用 Flank Drive® 系統，貼合螺帽/螺栓平面施力，提供 15–25% 更強的扭轉施力
- 表面採鎳鉻合金處理，可抗鏽防蝕
- 採用高品質國產鋼材製造，具備最佳強度與耐用性
- 12 角規格搭配 Flank Drive® 咬合系統設計
Features
產品特色
- Snap-on® 套筒採用 Flank Drive® 系統，貼合螺帽/螺栓平面施力，提供 15–25% 更強的扭轉施力
- 表面採鎳鉻合金處理，可抗鏽防蝕
- 採用高品質國產鋼材製造，具備最佳強度與耐用性
- 12 角規格搭配 Flank Drive® 咬合系統設計
Specification
產品規格

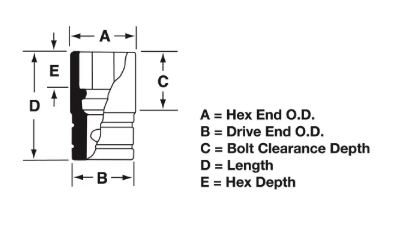

| Dimension C, Bolt Clearance Depth, inches | 13/16 |
| Size, inches | 15/16 |
| Country of Origin | USA |
| Dimension A, Hex End Diameter, inches | 1-9/32 |
| Finish | Chrome |
| Dimension D, Length, inches | 1-1/2 |
| Dimension E, Hex Depth, inches | 23/32 |
| Style | 12-Point |
| Dimension B, Drive End Diameter, inches | 1-1/4 |
